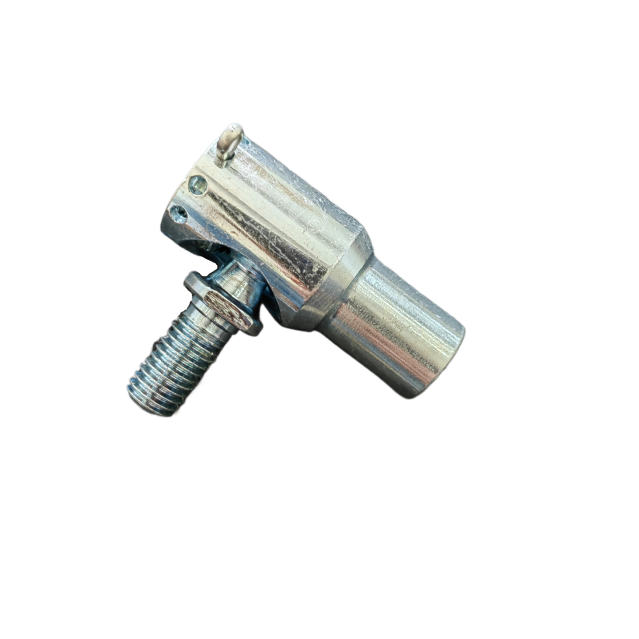

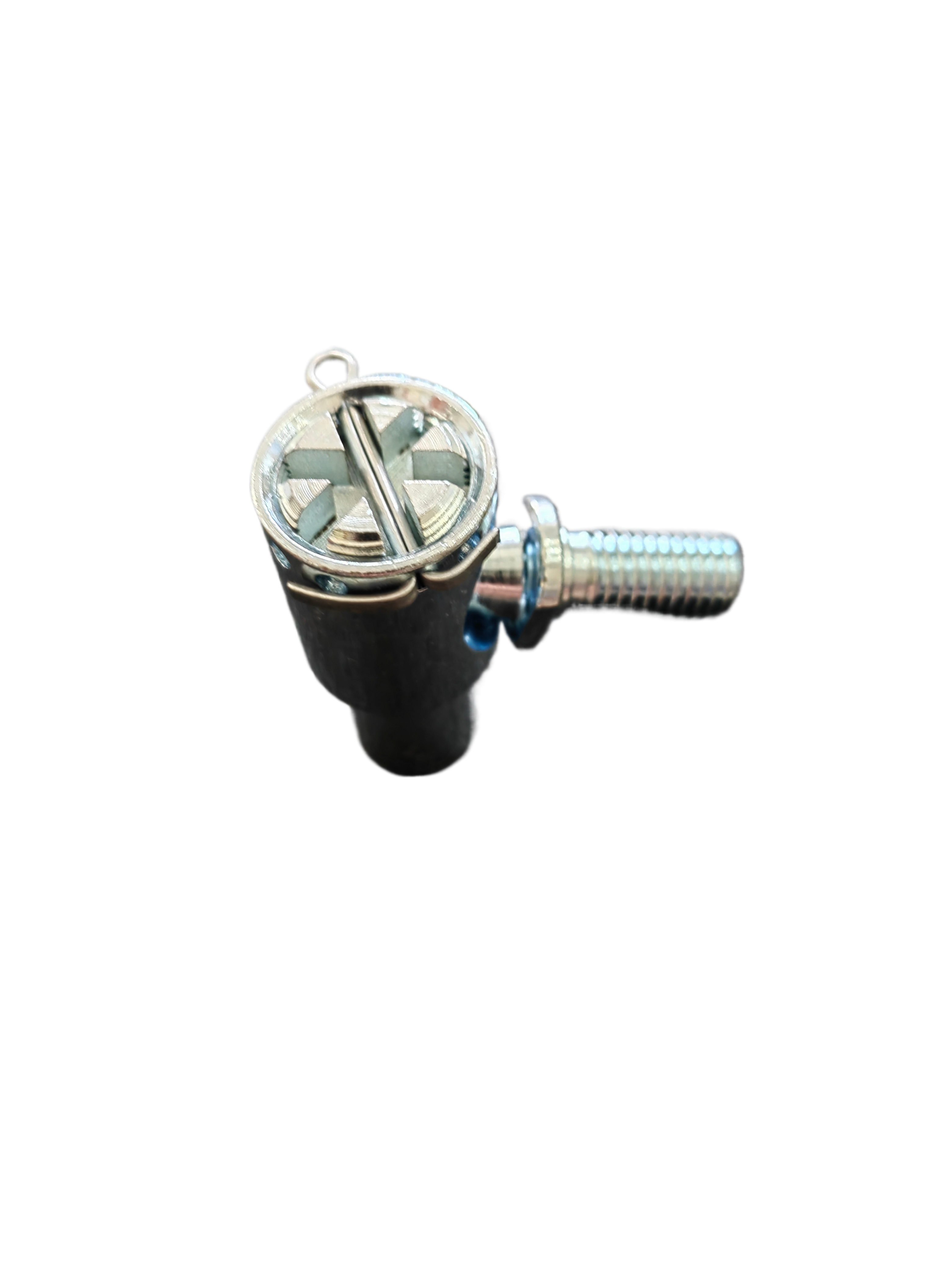

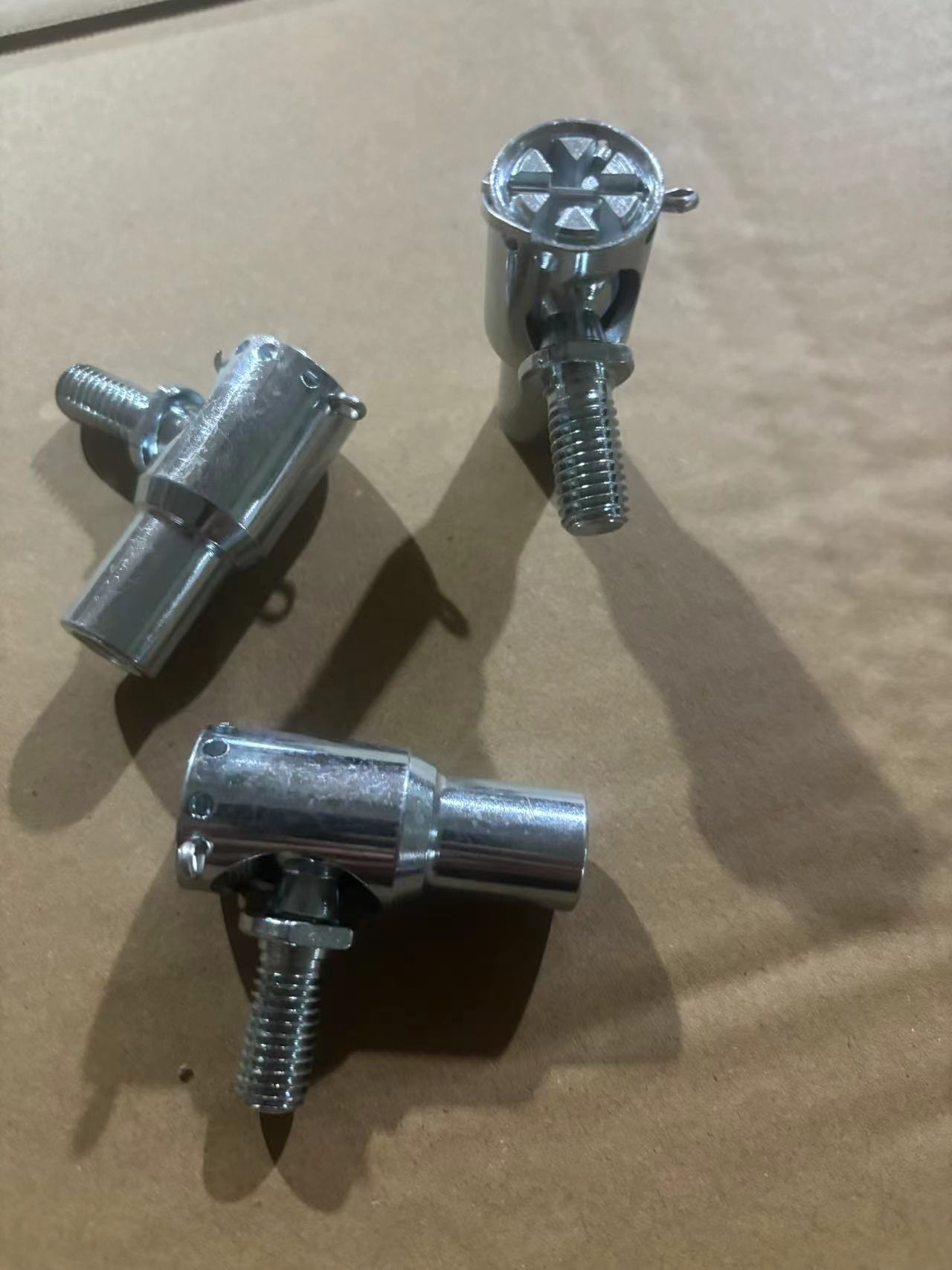

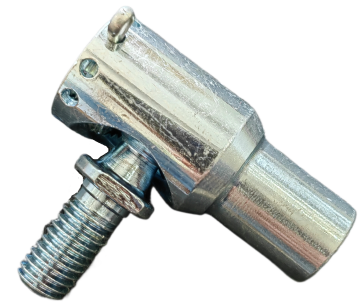

Angle joint DIN71801,C16M10

* Ball joints DIN71802 is consist of ball socket DIN 71805 and ball stud DIN 71803.DIN 71802 ball joints are made in steel,zinc/plated,stainless steel 304 or 316
* Special ball joints are available as customer's drawings or samples.

  • C16M10,Form C-DIN71801

  • Wuerd

  • low carbon steel

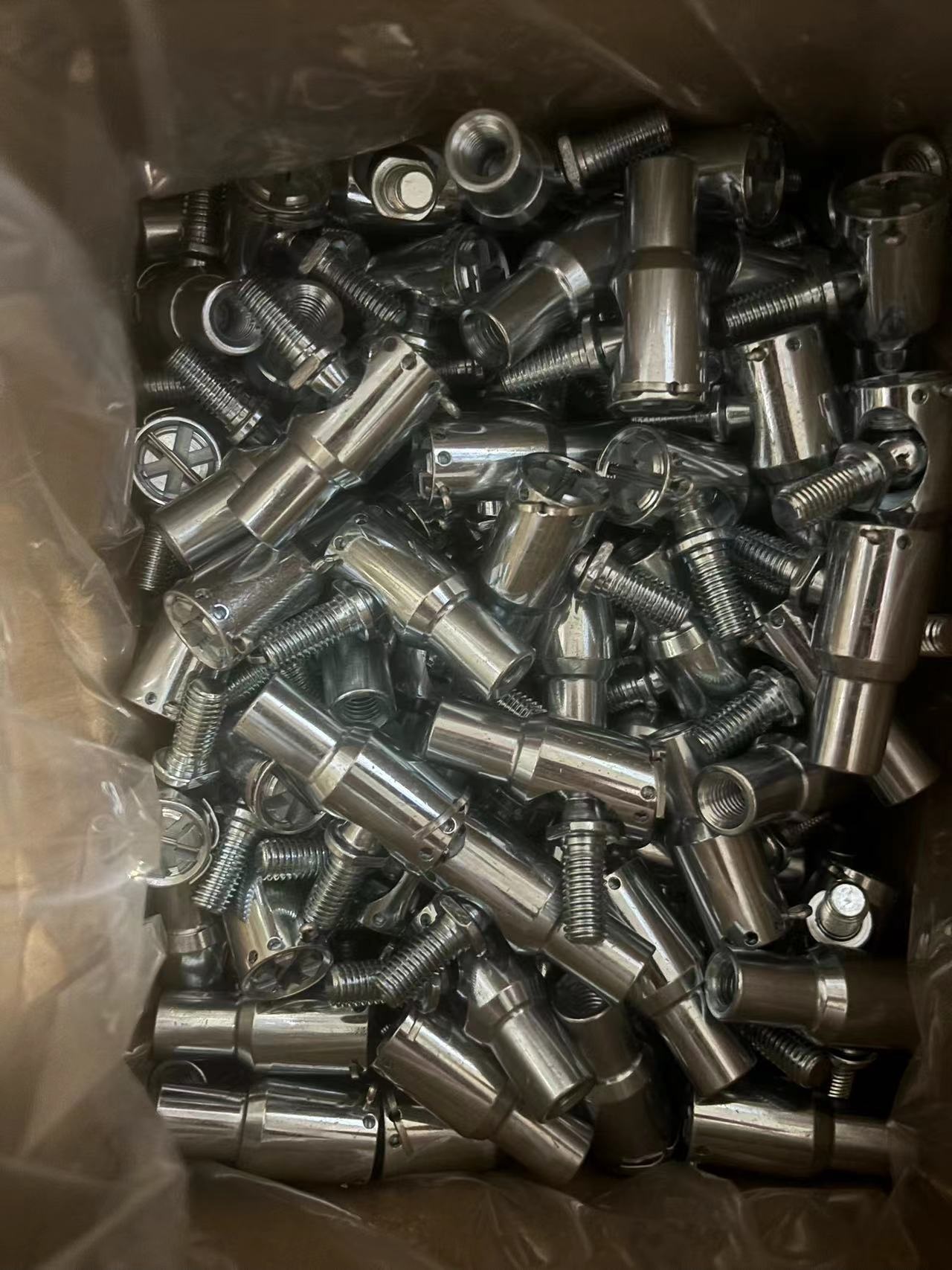

  • standard package
    special package is available

  • carton steel

  • passivated in zinc white-blue,zinc/black, zinc/yellow

  • stainless steel 304 or 316

  • carbon steel 1045

  • spring steel

Availability:
Quantity:
Inquire Add to Basket

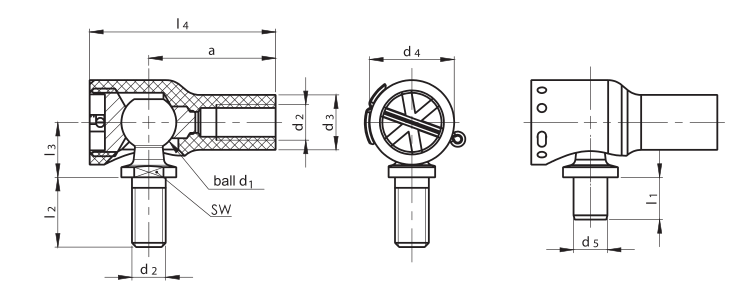

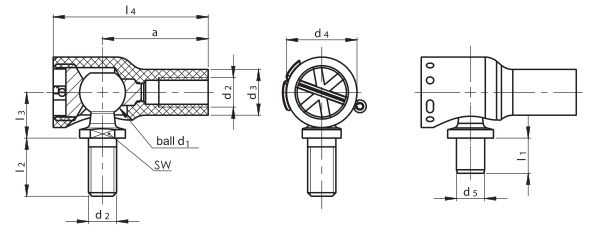

             Item

d1

d2

l1

a

d3

d4

d5

h11

l2

±0.3

l3

±0.3

l4

SW

h14

Weight(g)

(Form C)

DIN71801-C16M10

16

M10


35

16

22

10

20

16

52

13

123

* d1: ball diameter

Form C: with threaded pin

Form A: with rivet pin


Material:

ball sockets: steel Ball stud: steel

* Alternative: • stainless steel 304 or 316

Surface: zinc white-blue
