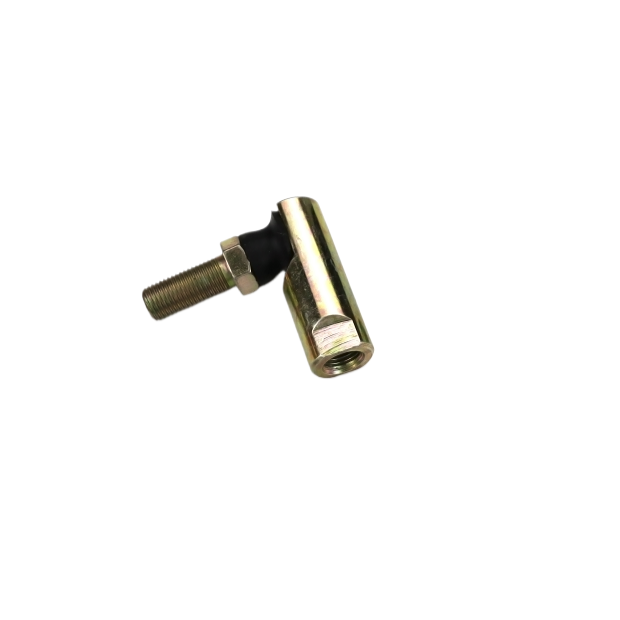

Ball joints,ES series

Tractor ball joints:
fit for lawn and garden tractors and agricultural machinery

  • ES187,ES250,...

  • Wuerd

  • ES312,ES375,...

  • bulk package
    special package

  • carton steel

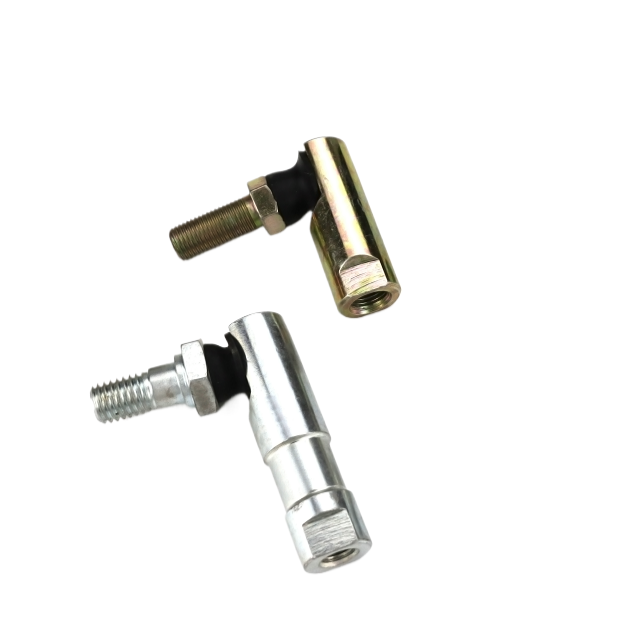

  • zinc white-blue,zinc/yellow

  • stainless steel 304 or 316

Availability:
Quantity:
Inquire Add to Basket

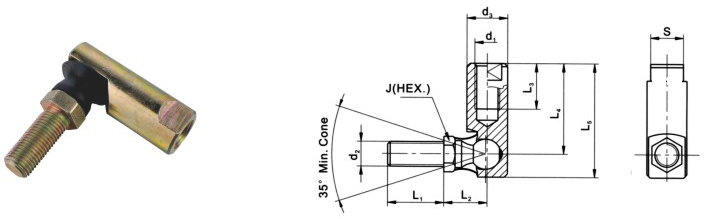

Item

d1

d2

d3

L1

L2

L3

L4

L5

S

J

ES187

10-32-B

10-32-A

0.375

0.438

0.438

0.438

0.875

1.063

0.313

0.313

ES250

1/4-28-B

1/4-28-A

0.438

0.563

0.469

0.5

0.969

1.219

0.313

0.375

ES312

5/16-24-B

5/16-24-A

0.5

0.688

0.531

0.563

1.125

1.406

0.394

0.438

ES375

3/8-24-B

3/8-24-A

0.625

0.875

0.688

0.75

1.375

1.688

0.5

0.5

ES438

7/16-20-B

7/16-20-A

0.75

1.125

0.875

1

1.938

2.375

0.625

0.625

ES500

1/2-20-B

1/2-20-A

0.75

1.125

0.875

1

1.938

2.375

0.625

0.625

ES625

5/18-18-B

5/18-18-A

0.875

1.125

1

1

2.063

2.578

0.748

0.75


Housing: low carbon steel

Stud: low carbon steel

Surface: zinc/clear, zinc/yellow, zinc/black

Alternative:  stainless steel 304 or 316

Unless specified, all dimensions are in inches

Special requests are available as drawings or samples
