Ball joints are critical components in a vehicle’s suspension system. They function as the pivot points between the suspension and the wheels, allowing the suspension to move up and down while the wheels can turn left and right. Regular inspection of these joints is crucial to maintaining vehicle safety and performance. This article will provide a thorough, step-by-step guide on how to check ball joints for wear and tear, signs of damage, and when it’s time to replace them. We’ll also explain common issues associated with ball joints and provide the tools needed to inspect and maintain them.
What are Ball Joints and Why Are They Important?
Understanding Ball Joints: What Are They and How Do They Work?

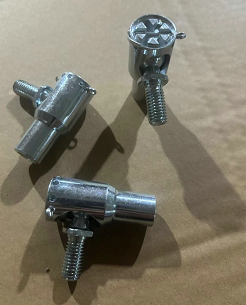

Definition: Ball joints are spherical bearings that connect the suspension of a vehicle to the wheels. They allow for the up-and-down motion of the suspension while also allowing the wheels to turn left and right. Essentially, they function as the “ball-and-socket” connection in your car’s suspension system.
Types of Ball Joints: Ball joints can be either upper or lower, depending on their placement in the suspension system. Both types serve the same function but are located in different positions depending on the design of the suspension system.
Function in the Suspension: These joints absorb forces from the road, allowing the wheels to move independently of the chassis while keeping the vehicle stable. The flexibility of the ball joint ensures that the suspension can react smoothly to bumps and turns.
Importance for Vehicle Handling and Safety: Ball joints directly affect the steering and handling of the vehicle. If a ball joint becomes too loose or worn out, it can cause instability, excessive tire wear, and poor handling. This can make it harder to steer and even cause the vehicle to be uncontrollable in severe cases.
How Do Ball Joints Wear Over Time?
How Do Ball Joints Wear?
Looseness: A loose ball joint is the most common sign of wear. It can cause abnormal movement in the suspension and steering.
Noise: A creaking, clunking, or squeaking sound can indicate that the ball joint is not properly lubricated or is becoming worn out.
Uneven Tire Wear: Worn ball joints can cause your tires to wear unevenly, leading to compromised traction and performance.
Friction: Constant movement and pressure between the ball joint and its socket cause friction, which gradually wears down the joint.
Environmental Conditions: Exposure to dirt, dust, road salt, and moisture can accelerate wear. Without proper lubrication, ball joints can become dry and rust.
Driving Conditions: Vehicles driven frequently on rough roads, or those exposed to harsh weather conditions, experience more strain on their ball joints, leading to quicker wear.
Age and Usage: As with any vehicle component, ball joints deteriorate with age and the number of miles driven.
Factors Leading to Wear: Over time, ball joints undergo wear and tear due to several factors:
Common Signs of Ball Joint Wear:
Warning Signs of Bad or Worn Ball Joints
How to Identify the Warning Signs of Worn Ball Joints
Inspecting for Physical Damage: If the ball joint is exposed or if you can access the suspension, look for cracks, rust, or physical damage to the joint. Excessive grease leakage or dirt buildup can also indicate wear.
When to Replace: If you notice these physical signs, the ball joint should be replaced as soon as possible to avoid further damage to your suspension.
Cause of Uneven Wear: A worn ball joint can affect the alignment of the wheels, causing uneven wear on the tires. You might notice bald spots or areas of tires that have worn down faster than others.
Why It’s a Red Flag: Uneven tire wear can lead to poor traction and increased risk of tire blowouts, not to mention the added cost of prematurely replacing tires.
Stiff Steering: If the ball joint tightens up or binds, you may notice difficulty in turning the steering wheel. This could be accompanied by a stiff spot in the steering wheel.
Why It’s Concerning: Stiff or binding steering can affect your ability to control the vehicle, especially when making sharp turns. This can be dangerous while driving.
What Causes the Sound: As the ball joint wears down, it can begin to rattle or make noise. The metal parts in the joint may rub against each other, creating a clunking or squeaking sound. This is most noticeable when turning or driving over rough roads.
Why It’s Important to Address: If left unchecked, these sounds may signal a more serious problem. A loose ball joint could eventually fail, leading to suspension collapse and loss of control.
Step-by-Step Guide: How to Check Ball Joints
Part 1: Checking Vehicles with Short Long Arm Suspension
Step 1 - Look for a Wear Indicator
Many older vehicles with short long arm suspensions have a wear indicator, usually a grease fitting on the ball joint. This fitting protrudes from the joint when it’s in good condition. As the ball joint wears, the fitting recedes into the housing.
Action: If the fitting is flush with the housing or further recessed, it’s a sign that the ball joint has worn down and needs to be replaced.
Step 2 - Raise the Vehicle
Place a jack under the lower control arm near the ball joint. Raise the car until the wheel is off the ground, ensuring the suspension is fully unloaded.
Why It’s Important: Raising the vehicle correctly allows you to inspect the ball joint for play without interference from the suspension.
Step 3 - Rock the Wheels and Check for Play
Vertical Play: Grab the wheel at the top and bottom and try to rock it back and forth. Any movement should be measured using a dial indicator against the ball joint housing.
Radial Play: Grab the wheel at the 3 o’clock and 9 o’clock positions and try to move it in and out. This checks for radial play, which can also indicate wear.
Action: If you notice excessive movement, consult the manufacturer’s specifications for acceptable limits and plan to replace the joint if necessary.
Part 2: Checking Vehicles with MacPherson Strut Suspension
Step 1 - Look for the Grease Fitting
Step 2 - Jack Up the Vehicle on the Front Cross-Member
Step 3 - Check for Play Using Your Hands
Step 4 - Listen for Any Unusual Sounds
Tools and Equipment Needed to Check Ball Joints
Tools You’ll Need to Inspect Ball Joints
Jack and Jack Stands: Essential for safely lifting the vehicle to inspect the suspension.
Dial Indicator: Useful for measuring vertical and radial play accurately.
Gloves and Safety Gear: Always wear gloves to protect your hands and goggles for eye safety.
Torque Wrench: For ensuring bolts are tightened to the manufacturer’s specifications during reassembly.
How to Test Ball Joints Without Special Equipment
How to Check Ball Joints Without a Dial Indicator
Manual Methods: If you don’t have access to specialized equipment like a dial indicator, you can still test ball joints by feeling for play manually. Using your hands to check the movement of the wheel can give you an indication of excessive wear, though it’s less precise.
Visual Inspection: Look for any signs of physical wear, such as cracks or leakage of grease, which indicate the ball joint needs replacement.
Common Mistakes When Checking Ball Joints
Common Mistakes to Avoid When Checking Ball Joints
Incorrect Jacking: Not raising the vehicle properly can result in tension on the ball joint, making it difficult to check for play accurately.
Ignoring the Manufacturer’s Specifications: Always compare the amount of play you find to the manufacturer’s recommended limits.
Not Using Safety Equipment: Failing to use proper safety measures like jack stands and gloves can lead to accidents while working under the vehicle.
How Often Should You Check Ball Joints?
How Often Should You Inspect Ball Joints?
Routine Inspections: It’s recommended to inspect ball joints as part of your vehicle’s regular maintenance schedule, such as during oil changes or tire rotations.
When to Check More Frequently: If you drive in rough conditions or have an older vehicle, you may need to check ball joints more often.
Can I Replace Ball Joints Myself?
Should You Replace Ball Joints Yourself or Hire a Mechanic?
DIY vs. Professional: Replacing ball joints is a challenging task that requires special tools. While experienced DIY enthusiasts may be able to handle the job, it's generally recommended to hire a professional mechanic, especially if you're unfamiliar with suspension components.
Conclusion
Checking and maintaining ball joints is crucial for safe and smooth driving. Regular inspections and timely replacements can prevent serious suspension issues and ensure that your vehicle handles properly.Always follow safety procedures, and if you notice signs of wear, don’t delay in replacing your ball joints to maintain optimal vehicle performance.
FAQ
Q: How do I know if my ball joints are bad?
A: Look for clunking noises, uneven tire wear, and difficulty steering, indicating worn ball joints.
Q: Can I check ball joints without special tools?
A: Yes, you can manually check for play and visually inspect for cracks or grease leaks without special tools.
Q: How often should I check my ball joints?
A: Inspect ball joints at least once a year or during routine maintenance like oil changes and tire rotations.
Q: What happens if I don’t replace worn ball joints?
A: Failure to replace worn ball joints can cause poor vehicle handling, tire wear, and suspension damage.
Q: Can I replace ball joints myself?
A: Replacing ball joints is complex; it's best to consult a mechanic unless you're experienced with suspension repairs.
