M6,M8,M10,M12
Wuerd
steel
zinc white-blue
stainless steel 304,316
Availability: | |
---|---|
Quantity: | |

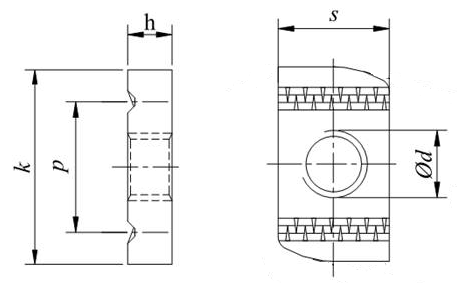

Item | ¢d | k | s | h | p | Weight (g) |
WD-SCN-M6 | M6 | 34/35 | 18.7/19.3 | 5.85/6 | 24/25 | 26 |
WD-SCN-M8 | M8 | 34/35 | 18.7/19.3 | 5.85/6 | 24/25 | 26 |
WD-SCN-M10 | M10 | 34/35 | 18.7/19.3 | 7.85/8 | 24/25 | 35 |
WD-SCN-M12 | M12 | 34/35 | 18.7/19.3 | 8.9/9.1 | 24/25 | 39 |

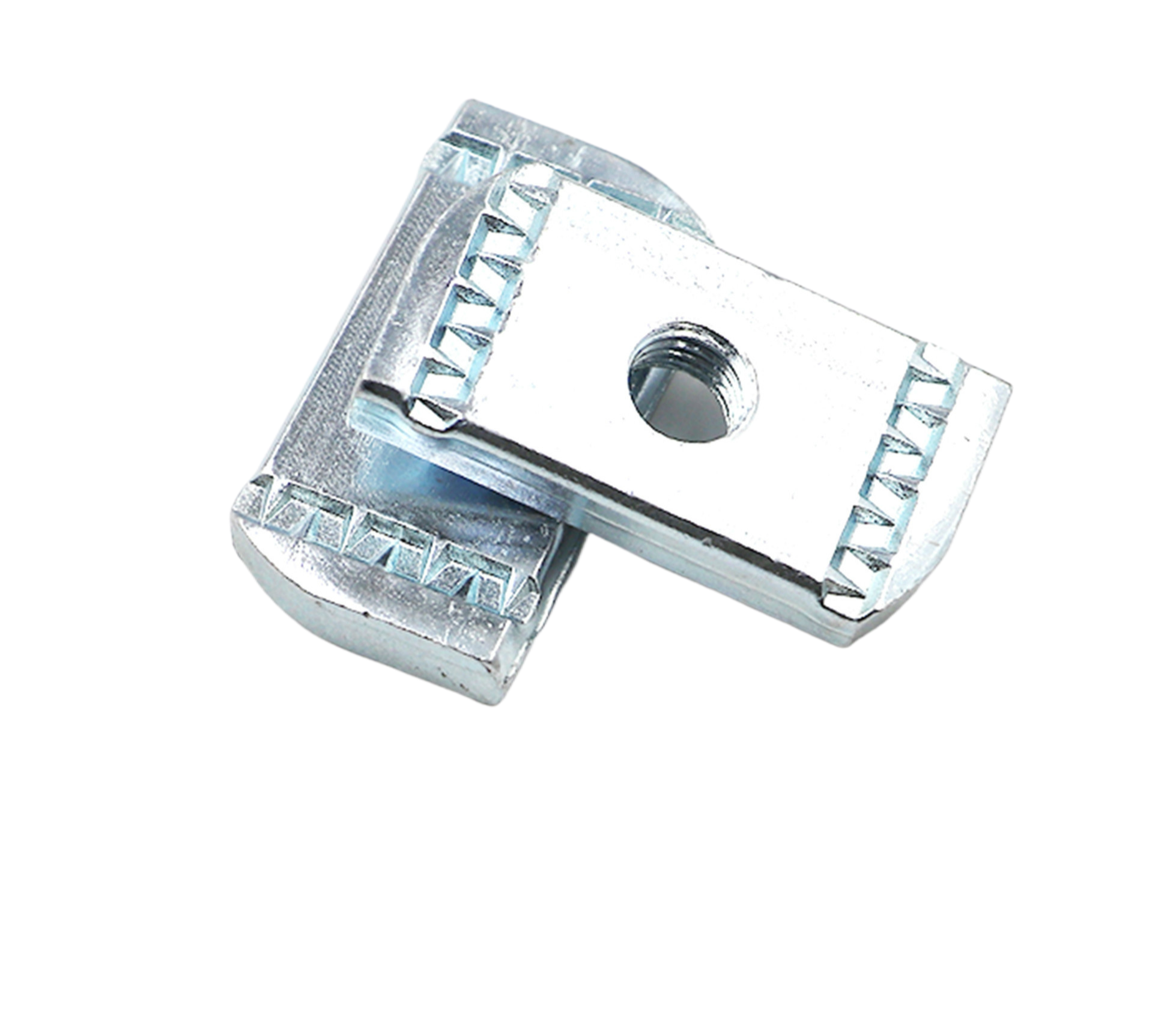

Strut channel nut
Material: steel
Alternative: stainless steel 304 or 316
Surface: zinc/clear, hot-dip galvanizing (HDG), dacromet coating
Size: from M6 to M12 and 1/4 to 1/2 threads
* Special strut channel nuts are made as drawings or samples(class 8.8 is available).

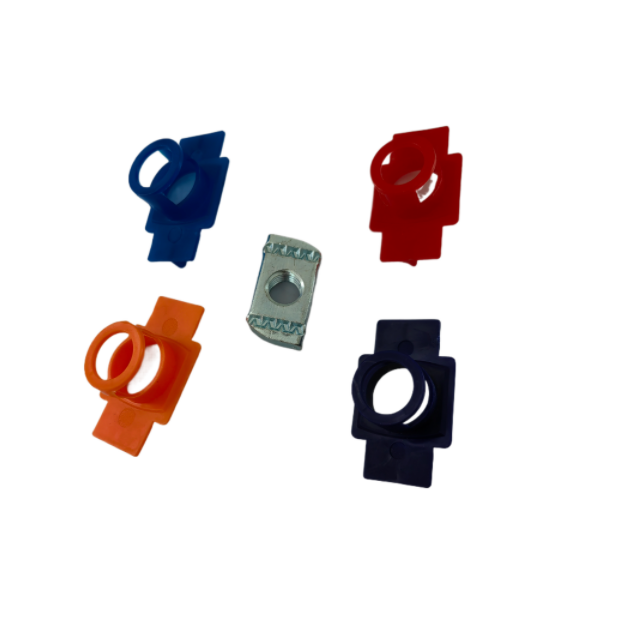

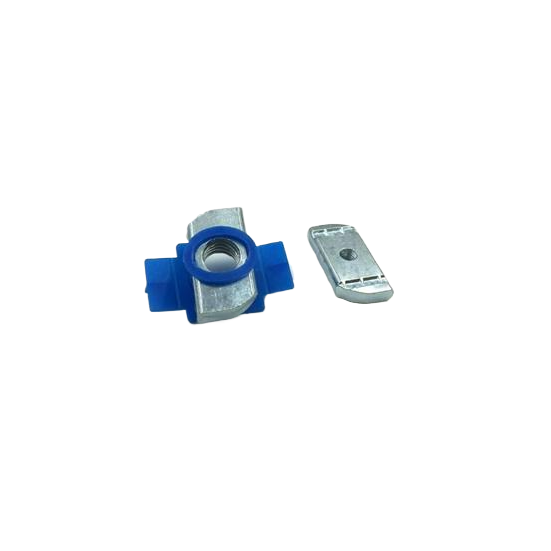

* Special strut channel nuts with or without plastic holder(blue,red,...) as request

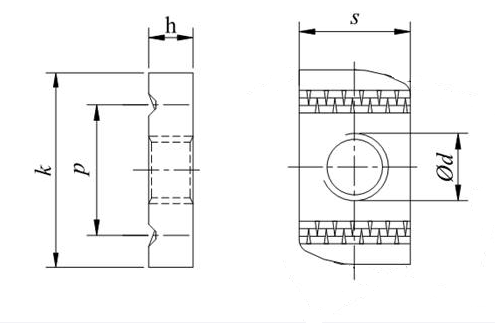

Item | ¢d | k | s | h | p | Weight (g) |
WD-SCN-M6 | M6 | 34/35 | 18.7/19.3 | 5.85/6 | 24/25 | 26 |
WD-SCN-M8 | M8 | 34/35 | 18.7/19.3 | 5.85/6 | 24/25 | 26 |
WD-SCN-M10 | M10 | 34/35 | 18.7/19.3 | 7.85/8 | 24/25 | 35 |
WD-SCN-M12 | M12 | 34/35 | 18.7/19.3 | 8.9/9.1 | 24/25 | 39 |

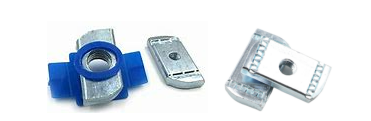

Strut channel nut
Material: steel
Alternative: stainless steel 304 or 316
Surface: zinc/clear, hot-dip galvanizing (HDG), dacromet coating
Size: from M6 to M12 and 1/4 to 1/2 threads
* Special strut channel nuts are made as drawings or samples(class 8.8 is available).
* Special strut channel nuts with or without plastic holder(blue,red,...) as request
