How to Insert T-slot Nuts

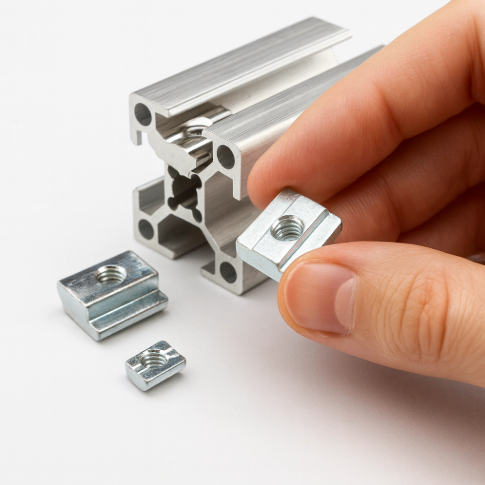

You can insert T-slot nuts by sliding, rolling, or dropping them into the T-slot channel of an aluminum extrusion, then securing with the correct bolts or screws. Using the right nut type, correct torque, and good installation habits keeps assemblies safe and durable. For unusual fixtures or special fasteners, you can reach out to Wuerd for application support.

Key Takeaways

· Stage tools and parts first. Faster builds, fewer mistakes.

· Match nut to slot series and thread. Wrong size = weak joints or damage.

· Use the right nut type for the job (end-feed, roll-in, hammer-head / drop-in / quarter-turn).

· Tighten to sensible torque. Too little = loosening; too much = slot damage.

· Inspect periodically for wear, alignment, and clamp loss—re-torque as needed.

· Need edge cases or customs? Ask Wuerd for guidance and special hardware.

What You Need

Important terminology:

· T-slot nuts work inside aluminum extrusions.

· Wood/MDF panels use T-nuts (pronged) or threaded inserts—they are not T-slot nuts. This guide covers both, but keeps them clearly separate.

Tools

For T-slot Aluminum Extrusions

·Hex keys / Allen wrenches

· Screwdrivers (as required by fastener head)

· Tape measure, square, deburring tool (for freshly cut ends)

· Optional: rubber mallet (light seating only, do not strike slot lips), thread locker (medium strength), anti-seize (see note), torque wrench, level

· Avoid impact drivers/wrenches. Use hand tools or torque-controlled drivers to prevent over-torque and anodized-surface damage.

For Wood/MDF Inserts (not T-slot nuts)

· Drill + bits, Forstner bit for counterbores

· Driver bits / screwdriver

· Clamps, pencil/marker

· Shop vac (dust control)

Tip： A torque wrench is the cheapest way to protect your slots, nuts, and bolts.

Materials (Reference)

Strong recommendation：For structural joints, choose steel or stainless T-slot nuts. Aluminum nuts are light but wear more quickly and have lower thread strength—reserve them for light-duty, weight-critical applications only.

Choosing the Right T-slot Nut

 Match the Extrusion Slot Series & Thread

· Slot width (e.g., 5/6/8/10 mm) must match the nut body.

· Thread size (M3–M10 typical) must match your bolt.

Quick Reference – Common Extrusion Families (Metric/EU)

Regional note: In North America, systems like 80/20 use “10-Series / 15-Series” with imperial threads (e.g., 1/4-20, 5/16-18). Always confirm the supplier’s datasheet before mixing metric/imperial hardware.

Pick the Nut Type for the Assembly Sequence

· End-feed (standard rectangular) – Highest strength, inserted from the profile end before ends are closed.

· Roll-in / spring-ball – Can be added anywhere along the slot after the frame is built; spring ball helps self-locate.

· Hammer-head / drop-in / quarter-turn – Drop-in from the top, then rotate to lock under the lips (often around 90°; follow the supplier’s specific instruction as designs may rotate less or more than exactly 90°). Some drop-in nuts include orientation marks (arrows/etches)—use them to confirm lock direction.

· Anti-rotation/serrated variants – Resist spinning and improve load transfer.

Material & Finish (for T-slot nuts)

Galling note: Stainless bolt + stainless nut can cold-weld under load. Use anti-seize and reduce torque 20–30%.

Outdoor/harsh environments: To mitigate galvanic corrosion between aluminum profiles and steel/stainless hardware, use isolation washers/shims or barrier coatings/sealants at interfaces, specify more corrosion-resistant platings or stainless fasteners, ensure high-quality anodizing on the profiles, and schedule periodic inspections/maintenance.

How to Install T-slot Nuts

Step 1 — Prepare the Slot

· Deburr freshly cut extrusion ends; vacuum chips/swarf from slots.

· Confirm slot series and nut size; test a loose fit before loading parts.

· Mallet caution: Light taps only to seat parts—do not hammer the nut or slot lips to avoid chipping the anodized layer or cracking the lips.

Wood/MDF panels (not T-slot nuts): Drill to the insert’s body OD; use a Forstner bit for clean counterbores. Install pronged T-nuts from the back or wood threaded inserts from the front per the manufacturer’s spec. For MDF, avoid over-driving; consider epoxy/wood glue where recommended to improve holding strength. (Heat-set inserts are for thermoplastics and are not appropriate for MDF.)

Step 2 — Insert the Nut (select your type)

End-feed (standard rectangular)

1. Slide the nut in from the open end of the extrusion.

2. Position roughly where needed.

Roll-in / spring-ball

1. Present the nut at the slot opening and roll it under the lips.

2. The spring ball holds it near flush for easier alignment.

Hammer-head / drop-in / quarter-turn

1. Drop the nut through the slot opening.

2. Rotate to the design’s lock angle (commonly ~90°; follow supplier guidance) until it seats under both lips and sits flat.

3. If the nut has orientation marks (arrow/line), align and rotate in the indicated lock direction.

Avoid forcing a mis-matched nut; distorted threads or damaged lips will weaken the joint.

Step 3 — Align & Assemble

· Place the bracket/plate.

· Insert the bolt and start threads by hand; ensure the nut stays flat and doesn’t spin.

· Add washers where needed to protect surfaces and distribute load.

· Washer choice: Prefer narrow-face/series-compatible flat washers to avoid interference near the slot lips and ensure full seating.

· Surface care: Serrated washers and serrated nuts can mar anodized aluminum. If cosmetics matter, prefer flat washers + threadlocker (or spring-ball nuts) for anti-rotation.

Step 4 — Tighten to Torque

·Tighten evenly to the target torque (see “Torque Guide” below).

· Avoid impact drivers/wrenches to prevent overshoot; use hand tools or torque-controlled drivers.

· Verify that the nut stays locked (drop-in rotation complete; serrations engaged).

· Re-check alignment and squareness with a square/level.

Torque Guide (Conservative Starting Points)

Always defer to your hardware supplier’s datasheets. Values below are practical starting ranges for steel T-slot nuts in aluminum extrusions with dry, clean threads. Real-world preload can vary by ~±25% due to friction scatter; when you must control preload, prefer a torque-plus-angle method or use direct tension measurement (tensioners/bolt stretch). Lubrication reduces friction → at the same torque you get higher preload, risking slot lip damage or thread pull-out—so reduce torque 20–30% when using anti-seize or lubricants. Liquid anaerobic threadlockers also add some lubricity during assembly; compared to dry torque, consider an additional ~10–20%** reduction (follow the adhesive manufacturer’s guidance).

Scope & limits: These are starting points, not ultimate bolt ratings. High property-class bolts (8.8/10.9/12.9), different coatings, thin plates, or short nuts will shift safe torque. The limiting factors are the nut’s effective thread height and the extrusion lips, not the bolt’s catalog maximum.

Thread engagement reality check

· Aim for 1.0–1.5× the bolt diameter of thread engagement.

· Many thin T-slot nuts don’t provide full 1.0D engagement; if so, use extended/long T-nuts, paired nuts, or switch to a T-bolt to avoid bottoming out. When switching to T-bolts, verify the T-head geometry and chamfers match your extrusion series and supplier standard.

· Avoid using an overlong bolt that “grounds out” on the slot floor or end of the nut.

Friction control

· Anti-seize vs. threadlocker: Generally do not use them together—threadlocker needs clean, oil-free threads, while anti-seize adds lubricity.

· For stainless-on-stainless, prefer anti-seize; for vibration, prefer medium-strength threadlocker (on clean, dry threads, with torque reductions noted above).

Common Mistakes & How to Avoid Them

Secure Fit Tips

· Prefer serrated / anti-rotation T-slot nuts for joints that see vibration (mind the aesthetic impact on anodized surfaces).

· Use spring-ball roll-in nuts for easy positioning and better “stay-put” behavior.

· For high-load corners, combine with corner brackets/gussets and through-bolted plates where possible.

· Threadlocker (medium strength) is often better than over-tightening (remember its lubricity → reduce torque).

· For stainless fasteners, anti-seize prevents galling; remember to dial torque down.

· Outdoor/harsh environments: minimize galvanic couples via isolation, barrier coatings/sealants, and corrosion-resistant finishes, and schedule periodic inspection.

· Design verification: For critical joints, consult supplier slip-load and pull-out load data (or test) and size hardware using the worst-case direction.

Best Practices

· Plan the sequence: End-feed nuts must be inserted before you cap ends or close frames.

· Square as you go: Tighten in stages while checking squareness/level.

· Routine checks: Re-torque critical joints after first run-in and at maintenance intervals.

· Protect the slot: Never pry against the slot lips; use proper levers/fixtures.

· Document your spec: Note slot series, nut type, material, and torque for repeatable builds.

· Environmental readiness: For outdoor/high-humidity/sea-spray exposure, design for galvanic isolation, specify higher-grade finishes, and seal interfaces where practical.

Quick MDF/Wood Insert Notes (Not T-slot Nuts)

· Choose the correct style: pronged T-nut from the back, or wood threaded insert from the front.

· Drill to the manufacturer’s body OD; use a Forstner bit for clean counterbores.

· For MDF, avoid over-driving; consider epoxy/wood glue where recommended to increase holding strength.

· These components are separate from the aluminum T-slot system; don’t mix terminology. (Heat-set inserts are for thermoplastics and not appropriate for MDF.)

You’re Ready to Build

1. Clean the slots and deburr ends.

2. Insert the correct T-slot nut type for your sequence.

3. Align parts, start threads by hand, then torque to target.

4. Re-check alignment and clamp, then spot-check after load-in.

Need custom T-slot nuts, anti-rotation features, or a torque spec for your exact profile (metric and imperial series)? Wuerd can help with selection, testing notes, and fast shipping to keep your project strong from the start.
