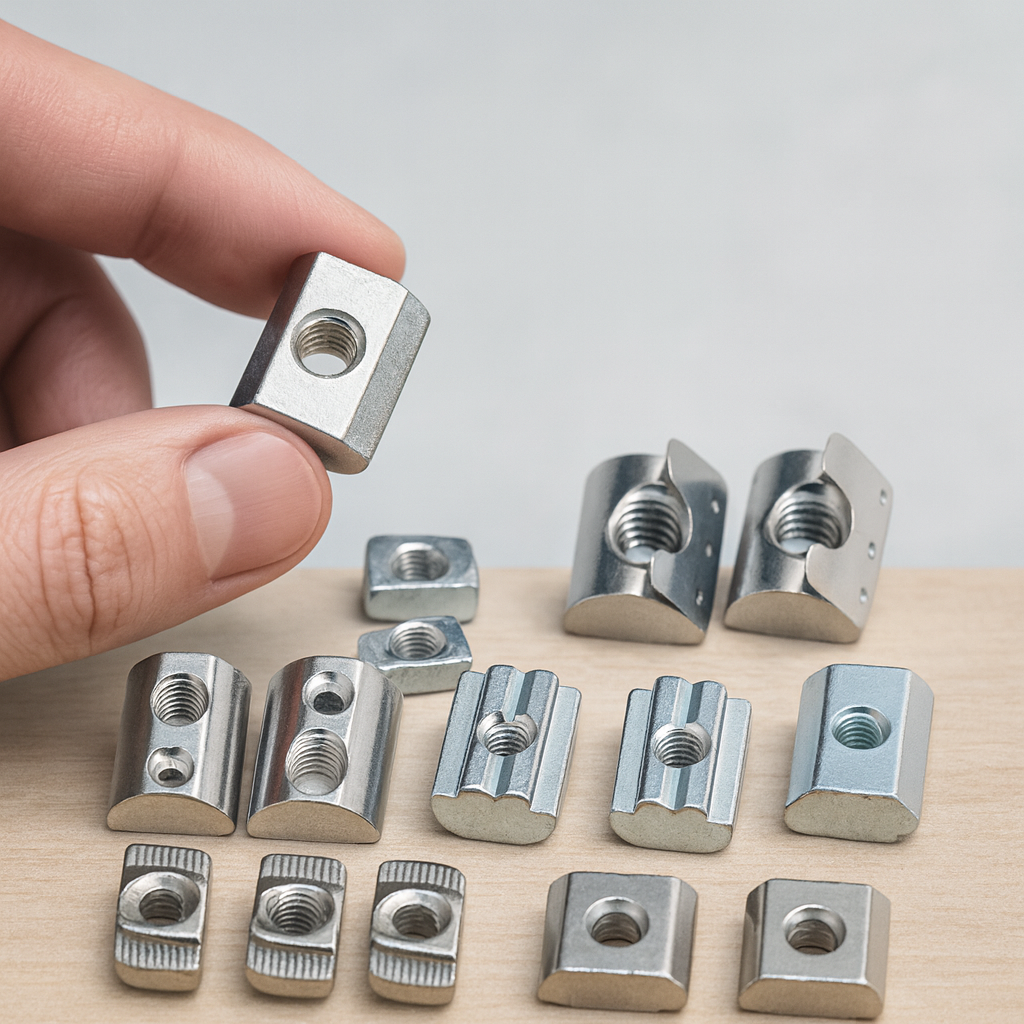

T-Slot Nuts (T-Shaped Nuts) — Enhanced Guide

What T-Slot Nuts Are Used For

T-slot nuts fasten components to T-slots in machine tables, workbenches, and modular aluminum profiles. They allow quick, repeatable positioning of clamps, brackets, sensors, guards, and other hardware without drilling or welding. Common domains:

• Machine tools & fixtures (heavy duty) — clamping on worktables and base plates

• Automation & manufacturing (light–medium duty) — frames, guards, conveyors, tool holders

• Workshops & labs — adjustable jigs, benches, test setups

• Modular furniture & enclosures — reconfigurable shelves, racks, frames

Key benefits: modularity, fast reconfiguration, and component reuse.

Standards & Terminology (Corrected)

Do not use hex-bolt or structural fastener standards to judge T-slot nut compliance. For T-slot systems, use:

Machine-table ecosystem (heavy duty / fixtures)

• DIN 650 — T-slots in machine tables (slot dimensions)

• DIN 508 — T-nuts for machine tables

• DIN 787 — T-head (hammer-head) T-slot bolts

Aluminum profile ecosystem (light–medium duty / modular frames)

• Defined by slot width (e.g., 6 / 8 / 10 mm) and series (20 / 30 / 40 / 45 series).

Each brand (e.g., Bosch Rexroth, ITEM, Misumi, 80/20) publishes its own compatibility data. Some brands also offer fractional (inch) series with UNC threads—always confirm with the brand’s data sheets.

How T-Slot Nuts Work

Two common mechanisms:

• End-in — Insert from the open end of the T-slot; typically no rotation required. Used widely on machine tables and heavy fixtures (DIN 508-type).

• Drop-in/roll-in (90° turn) — Insert anywhere along the slot opening and rotate 90° so the head bears on the slot shoulders. Common for aluminum profiles.
  Often available with spring balls or leaf springs that provide light preload to hold position during assembly.

T-slot nuts distribute load via their broad head bearing on slot shoulders. Correct fit prevents turning and pull-out when the mating bolt is tightened.

Materials & Surface Treatments (Accurate)

• Carbon / alloy steel — High strength; for bolts, refer to ISO 898-1 property classes 8.8 / 10.9 / 12.9; for nuts, refer to ISO 898-2 classes 8 / 10 / 12 as applicable. Use zinc, zinc-nickel, zinc-flake coatings (e.g., Dacromet-type), nickel plating, or similar for corrosion protection.

• Stainless steel (A2/A4) — Excellent corrosion resistance, moderate strength (e.g., A2-70, A4-70/80; watch for galling, consider anti-seize per ISO 3506-1/-2). “70/80” denote minimum tensile strength in tens of MPa units (e.g., 70 → 700 MPa).

• Aluminum alloys — Lightweight and corrosion-resistant but lower strength than steel; suited for light duty and frequent reconfiguration.

• Engineering note: Solid aluminum is difficult to ignite, but aluminum powders are combustible; do not claim “non-combustible” as a selection reason.

Applications & Assembly Notes

• Machine tools / fixtures: Prefer DIN 508 T-nuts + DIN 787 T-bolts, end-in mounting; use locator blocks/washer packs to control contact and avoid slot damage. Tighten with a torque wrench per process sheets.

• Automation & aluminum frames: Drop-in/roll-in nuts with spring balls improve pre-positioning and handling. Use threadlocker or mechanical locking for vibration-prone applications; pre-position, then final-torque.

• Workshop setups: Use T-nuts to mount clamps, stops, and tool holders; layouts can be reconfigured rapidly without drilling.

Selection Decision Table (Use in Practice)

Quick Decision Flow

1. Choose ecosystem

• Machine table / heavy fixture → DIN 650 + DIN 508 path

• Aluminum profile frame → slot width / series + brand compatibility

2. Choose installation method

• Can load from slot end → End-in

• Must insert mid-span / post-assembly → Drop-in/roll-in (90°); consider spring-ball/leaf-spring variants

3. Match load & strength

• Light (sensors, covers): aluminum or stainless, moderate strength

• Medium (guards, stations): carbon steel, property class ~8 (bolt 8.8 + nut class 8)

• Heavy (clamping/fixtures): carbon/alloy steel, bolt 10.9/12.9 and nut class 10/12 respectively, subject to diameter limits defined in ISO 898-2. Always confirm slot shoulder capacity.

4. Match thread to slot width / series (starting points; confirm with brand data)

• 6 mm slot → M4–M5

• 8 mm slot → M5–M6

• 10 mm slot → M6–M8

• 45-series (often 10 mm slot) → M8–M10

5. Environment & corrosion

•  Wet/outdoor/chemical → stainless or high-performance coatings on steel; mitigate galvanic couples (e.g., isolating washers) when joining dissimilar metals.

6. Locking & maintenance

•  Vibration → medium-strength threadlocker or mechanical locking; define re-torque intervals

Compatibility Checklist

· Slot geometry (width, depth, lip/chamfer) vs. T-nut head geometry

· Series & thread pairing (e.g., 40-series, 10 mm slot with M8; some fractional systems use UNC)

· Cross-brand mixing → verify with profile data sheets and do a trial fit

· Check clearance with sliders, corner brackets, cover strips, etc.

Reference Torque Table

Values are illustrative and must be limited by the slot shoulder capacity and the profile/table manufacturer’s documentation.
Dry assembly, coarse pitch, carbon-steel T-nut with matching steel bolt; rule-of-thumb values for preliminary process planning. With lubricants or low-friction coatings, reduce torque for the same clamp force.

Additional guidance:

· Assumes friction factor K≈0.20 (dry). With lubricants or low-friction coatings, reduce torque accordingly.

· For stainless steel joints, start with ~20–30% lower torque and use staged tightening with anti-seize to mitigate galling.

· Use a safety factor ≥ 2 for clamp force vs. pull-out/shear in vibrating or shock environments.

· Never torque solely to bolt strength—check slot shoulder bearing, pull-out, and local yielding of the profile/table.

Limitations & Pitfalls

· Load capacity is limited by T-nut strength and slot shoulder bearing/pull-out. Always check both.

· Compatibility varies among brands even with the same “series” name (slot depth, lip shape, chamfers).

· Vibration can relax joints; schedule re-torque and consider threadlocker or mechanical locking.

· Surface contamination (oil on bearing faces) reduces frictional holding—keep contact faces clean.

Maintenance Best Practices

· Brush or vacuum chips/dust from slots regularly.

· Inspect & re-torque on a defined interval (especially on vibrating equipment).

· Replace hardware that shows galling, fretting, corrosion, or shoulder indent damage (do not reuse deformed T-nuts).

· In corrosive or outdoor service, specify stainless or high-performance coatings and consider dielectric isolation where galvanic couples may occur.

FAQs (Correct & Concise)

Q1: How do I select a T-slot nut?

Confirm ecosystem (DIN 650/508 vs. profile series/slot width) → pick installation method (end-in vs. drop-in/roll-in) → choose material & strength to match load → verify slot shoulder capacity and set torque from the reference table/manufacturer guidance.

Q2: Can I mix brands?

Sometimes, but only after checking slot geometry details and doing a trial fit. Minor differences can cause poor seating or premature failure.

Q3: Do I need special tools?

Aluminum frames generally need only hex keys; machine-table fixtures should be torqued with a torque wrench to the defined process values.

Quick Reference: When to Use Which Type

· End-in T-nuts (DIN 508-type) — highest repeatability and strength on machine tables; require slot-end access.

· Drop-in/roll-in T-nuts — best for post-assembly additions or constrained access in aluminum frames.

· Spring-ball/leaf-spring variants — speed assembly and help maintain position before final tightening.
